Function and Features:

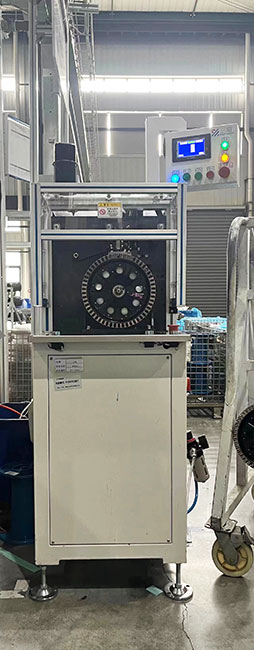

This equipment is suitable for inserting insulation paper such as the stator of hub motors.
The equipment uses a mechanical transmission mechanism for synchronous forming and paper cutting, with servo paper feeding and indexing. It can be adjusted directly through parameters to press the insulated paper with good creases, cut it off using the equipment, and insert it into the stator slot.
Main Technical Parameters:
Equipment Dimensions: 820*600*1800mm (L*W*H)
Equipment Weight: ≈200Kg
Input Voltage: AC 380V±10％ 50/60HZ
Input Power: Approx. 1.5kw
Working Air Pressure: 0.4~0.7Mpa
Stator Outer Diameter: φ100~260mm
Stator Stack Height: 20~50mm (including the core thickness)
Core Slot Type: Straight Slot
